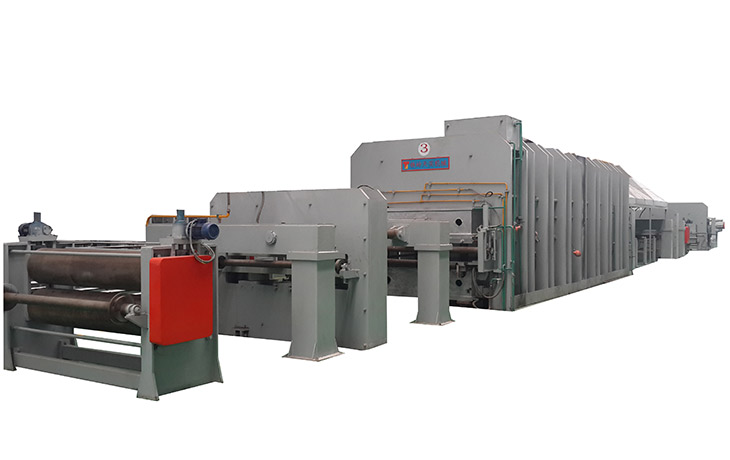

織物芯輸送帶平板硫化生產線
|
織物芯輸送帶平板硫化生產線 技術參數/名稱
|
|||||||
| 性能參數 | 1000X10000X2 | 1200X10000(12600)X2 | 1400X10000(12600)X2 | 1600X10000(12600)X2 | 1800X10000 | 2200X10000 | 2400X10000 |
| 公稱合模力MN | 35 | 42/52.92 | 49/61.74 | 56/70.56 | 63 | 77 | 84 |
| 熱板規格（LXW)mm | 1000X10000 | 1200X10000(12600) | 1400X10000(12600) | 1600X10000(12600) | 1800X10000 | 2200X10000 | 2400X10000 |
| 熱板單位面積壓力MPa | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 |
| 油缸直徑mm | 500 | 420 | 500 | 600 | 600 | 600 | 650 |
| 油缸數量支 | 10 | 18 | 16 | 16/20 | 16/20 | 16 | 16/18 |
| 夾持力KN | 500 | 700 | 900 | 1100 | 1200 | 1500 | 1700 |
| 拉伸力KN | 500 | 700 | 900 | 1100 | 600 | 750 | 850 |
